Technical Specification
- Power source: gas
- Powerhead weight: 22 lbs.
- Torque (auger): 60
- Torque (engine): 25
- Gear reduction: 5:1
- Drilling gear speed: 200 rpm
- Engine power : 9 bhp
- Fuel capacity: 7l
- Displacement: 3 cc
- Power output: 1,4/1,9 kw/bhp
- Displacement: 36,3 cm³
- Weight: 10 kg
- Sound pressure level: 92 db(a)
- Sound power level: 100 db(a)
- Vibration level left/right: 1,7/2 m/s²
Key Features
- 4-MIX® engine: The 1.4 kW STIHL 4-MIX® engine combines the advantages of a two-stroke and a four-stroke engine – it is economical, smooth, responsive and powerful. It produces less emissions and doesn’t need an oil service.
- Long-life air filter system: Together with the compensator that is integrated into the carburetor, the long-life air filter system offers long cleaning intervals and reliable engine protection.
- QuickStop drill brake: The Quickstop drill brake release lever stops the drill immediately when it gets stuck in the ground, It also serves as a reverse rotation lock – a stuck bit can then be easily unscrewed manually.
- Hip padding: During use the hip pad is positioned comfortably close to the body or leg of the operator, making the auger safe and easy to use.

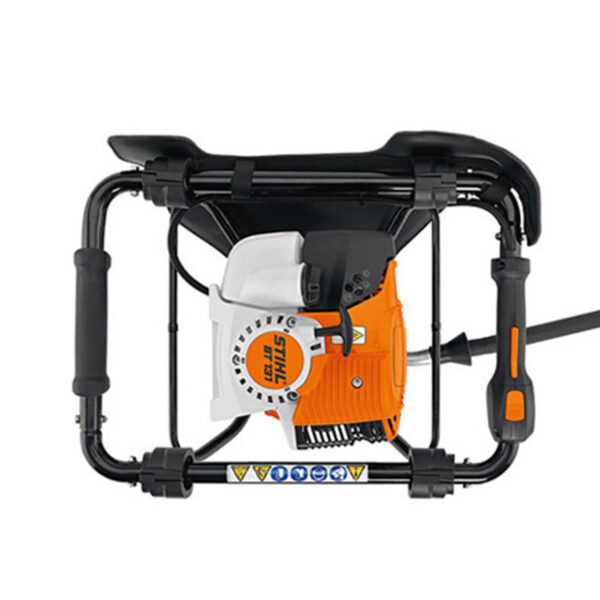

- Vibration dampening frame: The vibration-dampening frame with four vibration elements provides comfortable working and reduces fatigue when drilling. The engine is positioned separately from the handle frame, allowing easier working over longer periods.

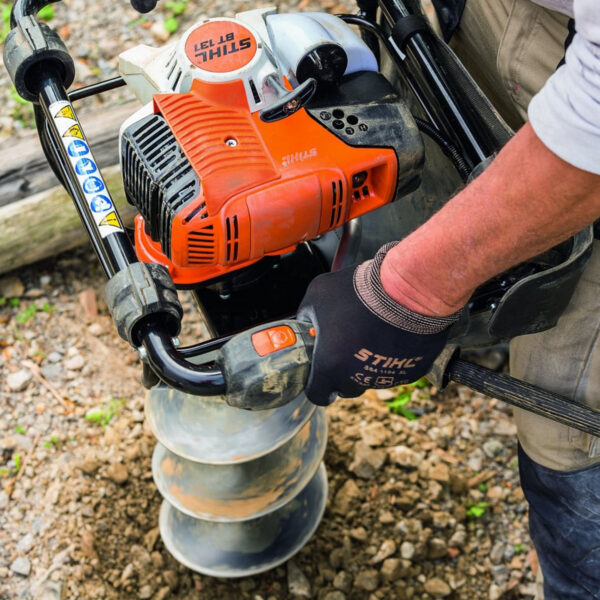

- Multi-function handle: All operating elements for the engine control are integrated into the right-hand handle, enabling the drill to be operated by finger pressure. The hand always remains in a working position.
