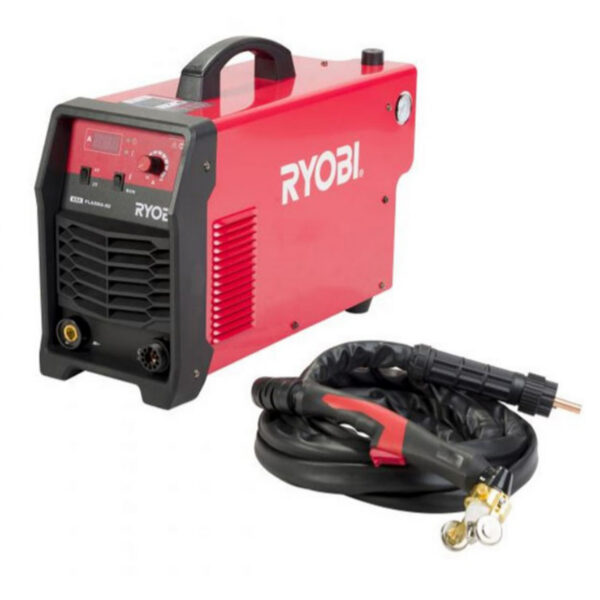

RYOBI PLASMA CUTTER 60 AMP PLASMA CUTTER

Key Features

• Rated input voltage: 3-phase AC380V±15% 50/60Hz
• Rated input capacity: 10kVA
• Current adjustment range: 88-104V
• Rated duty cycle: 100%
• Rated output voltage: 88-104V
• No load voltage: 300V
• Overall efficiency: 85%
• Housing protection grade: IP21S
• Power factor: 7 cosɸ
• Insulation: Grade F
• cut capacity (mild steel):   Clean cut 12mm, Sever 30mm
• Gas pressure range: 4-0.6Mpa
• Dimensions: 546 x 216 x 387mm
• Net Weight: 17Kg
• Clean Cut 12mm Stainless Steel and 20mm Mild Steel cutting capacity Piercing 30mm
• Ideal for cutting steel, stainless steel, galvanized steel, aluminum, copper and brass
• IGBT inverter technology with digital LED display
• HF arc ignition mode for easy start, with post-flow function

100% duty cycle with thermal overload protection
