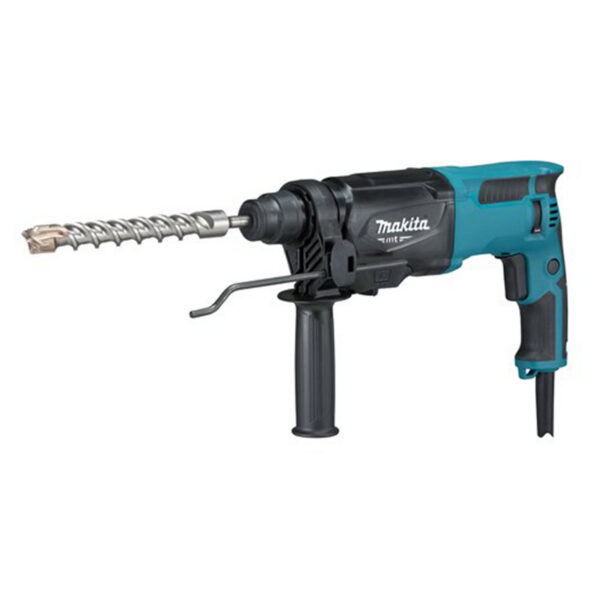

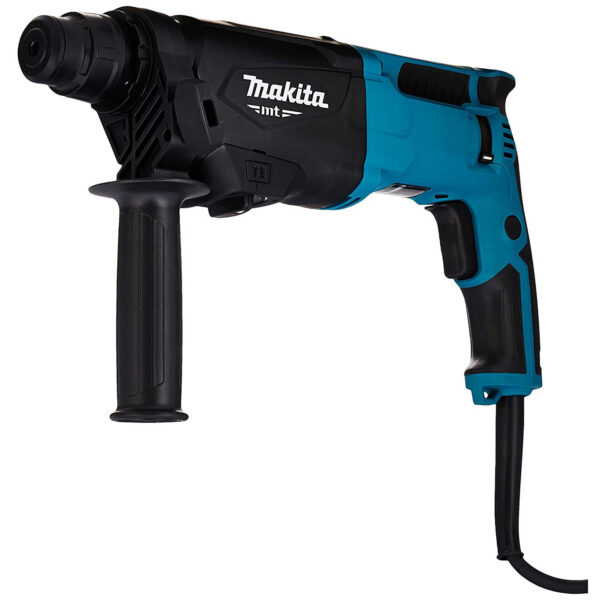

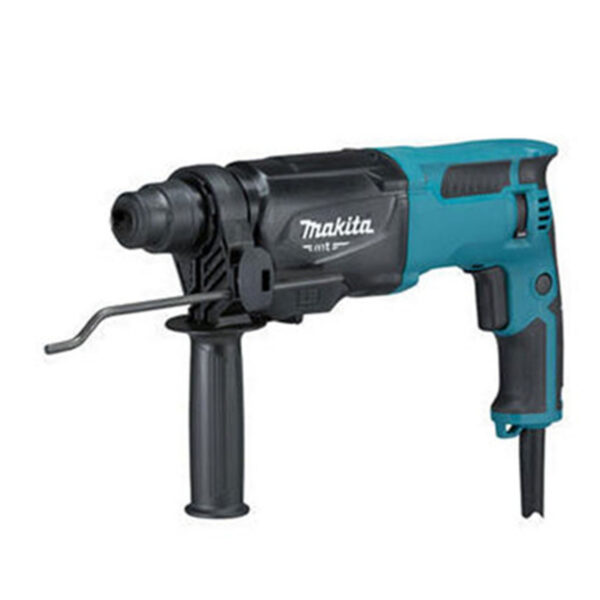

MAKITA COMBINATION HAMMER DRILL 800W (M8701B)

Key Features

• High performance and durability
• 3-Mode operation for “Rotation Only”, “Hammering with Rotation” or “Hammering Only” for multiple applications
• Re-located operating mode lever for increased protection and durability
• Improved bit guide for increased bit stability during drilling applications
• Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
• Soft grip provides more comfort and control
• Powerful 800 W motor delivers 2.3 J of impact energy to handle the most demanding applications
• Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
• Forward/reverse lever – position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse
• Variable speed trigger allows operator to adjust speed based on materials or application
• One-touch sliding chuck for easy bit installation and removal
• Depth gauge for increased drilling consistency
• Recessed lock-on button for continuous use
• Double insulated
• Continuous rating input: 800W
• Impact Energy: EPTA-Procedure 05/2009: 2.3 J
• Concrete: 26 mm (1″)
• Core Bit: 68 mm (2-11/16″)
• Diamond Core Bit (Dry Type): 80 mm (3-1/8″)
• Steel: 13 mm (1/2″)
• Wood: 32 mm (1-1/4″)
• Blows Per Minute (BPM): 0 – 4,500
• No Load Speed (RPM): 0 – 1,200
• Vibration Level: Hammer Drilling into Concrete: 16.5 m/s²
• Sound Pressure Level: 90 dB(A)
• Sound Power Level: 101 dB(A)
• Noise K Factor: 3 dB(A)
• Dimensions (L x W x H): 362x71x194 mm (14-1/4″x2-13/16″x7-5/8″)
• Net weight: 7 – 3.1 kg (6.0 – 6.8 lbs.)
• Power supply cord: 0 m (13.1 ft.)
